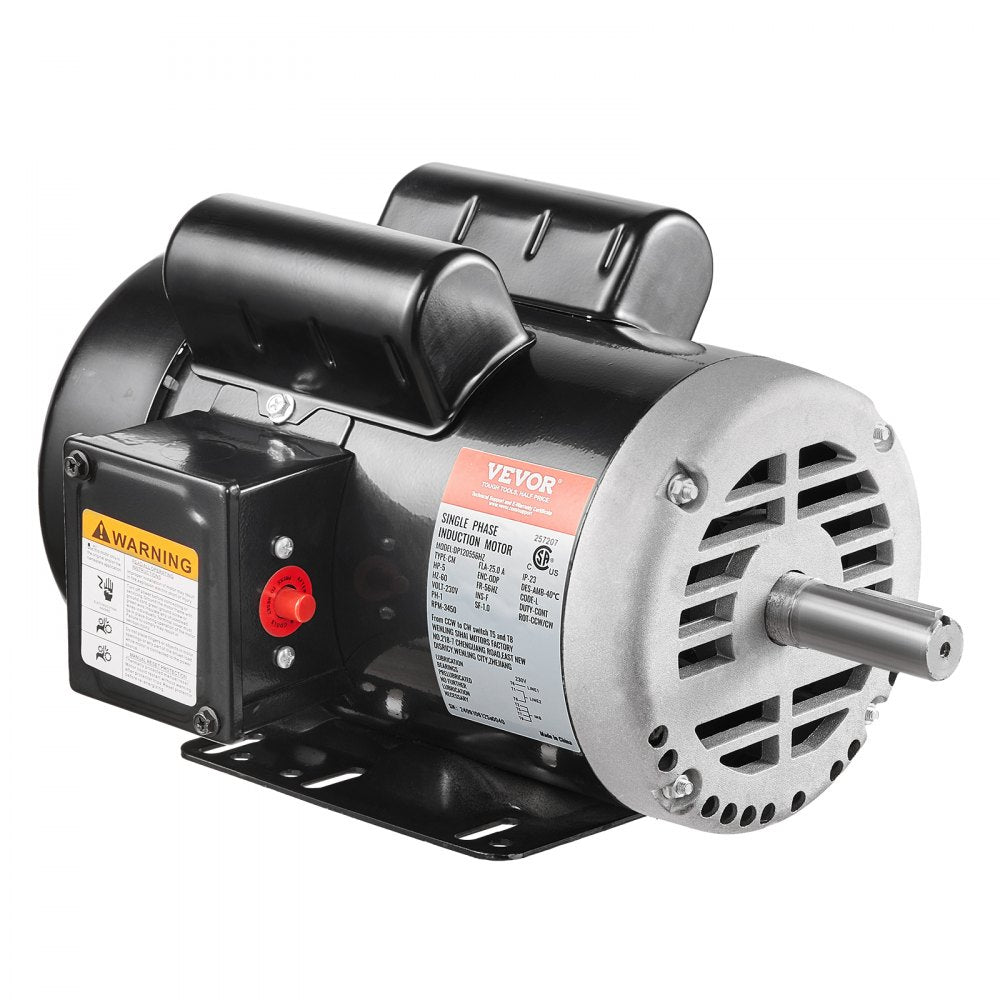

VEVOR 5HP Air Compressor Electric Motor, 230V 25 Amps, 56HZ Frame 3450RPM, 7/8" Keyed Shaft, 2.25" Shaft Length, Single Phase, CCW/CW

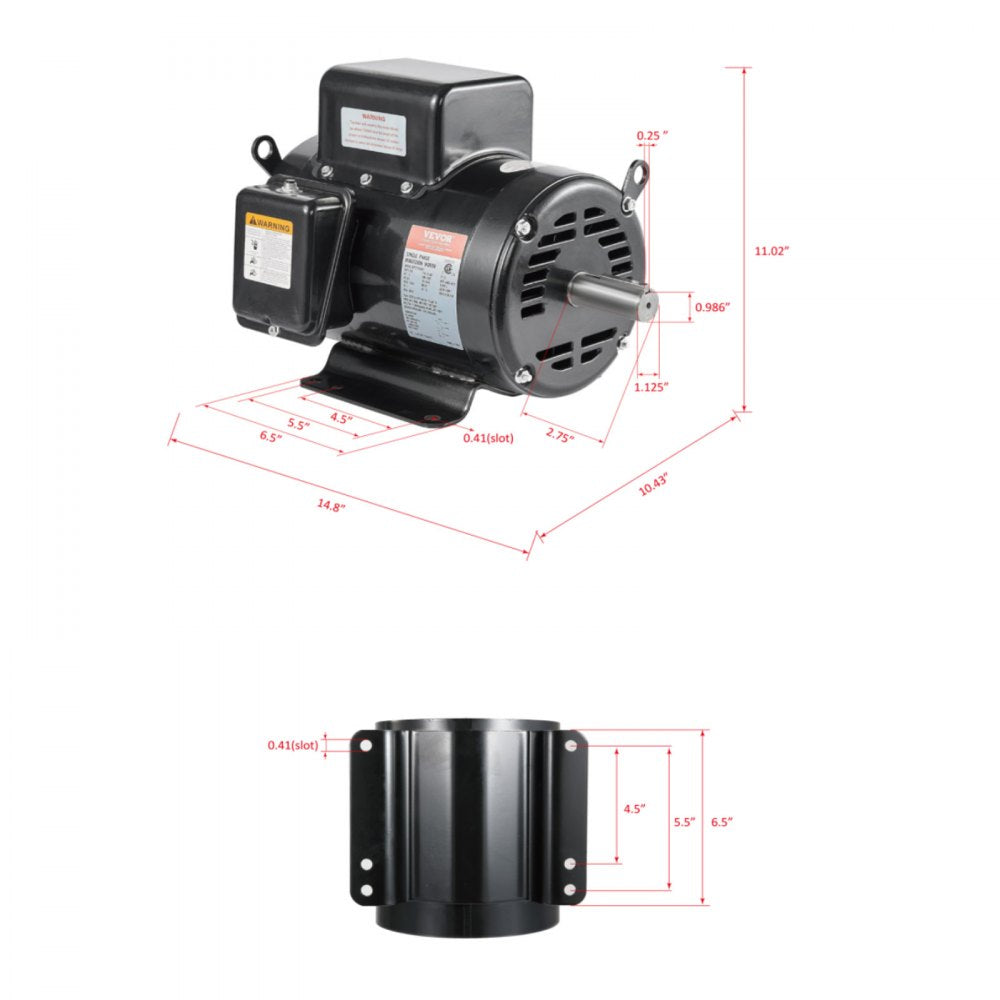

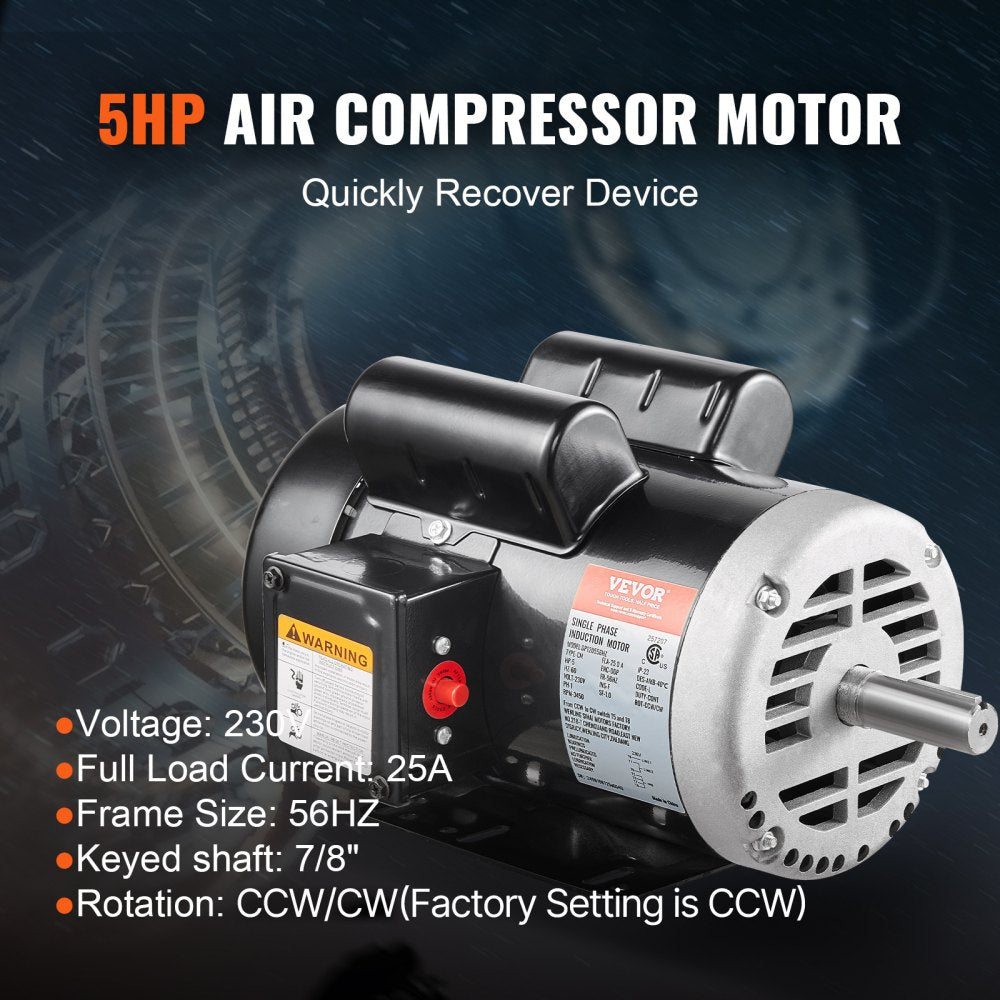

Power your machines with the VEVOR 5 horsepower single phase electric motor, 3450 RPM, reversible shaft. Ideal for air compressors and industrial use. Buy now! Features High Performance: 5HP 3450 RPM, Single Phase, Full Load Amps: 25Amp, 230V 60Hz, SF: 1.0. Frame Type: 56Hz Frame, 7/8" Keyed shaft, 2.25" Shaft length, 0.188" Keyway Size. Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life. Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations. Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 60.0 amps.) Specifications Item Model Number DP120556HZ Voltage 230V Frequency 60HZ Current 25A Rotation Speed 3450rpm SF 1.0 Source: VEVOR Official | SKU: ODPKYJDJ5HP54XUYVV7
