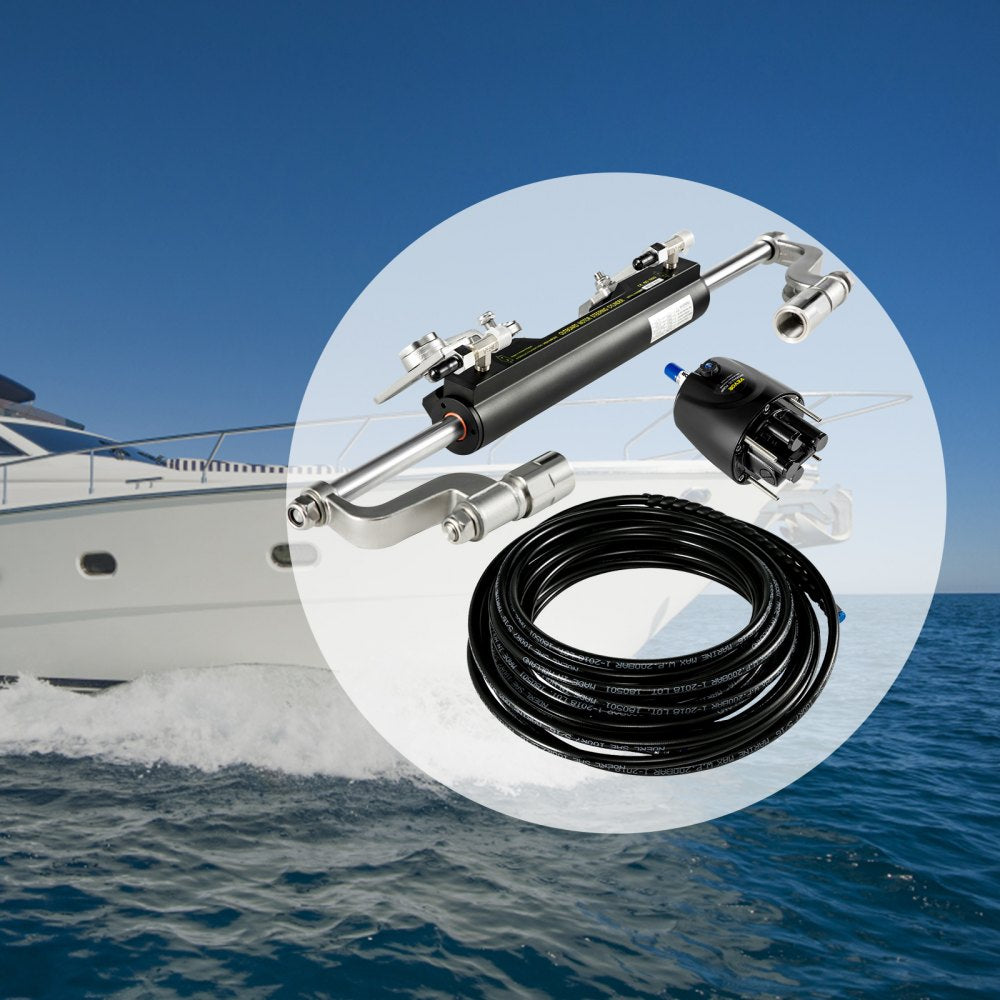

VEVOR Hydraulic Steering Kit, 300HP Hydraulic Steering Compact Cylinder, Hydraulic Outboard Steering Kit with Helm Pump for Boat Marine

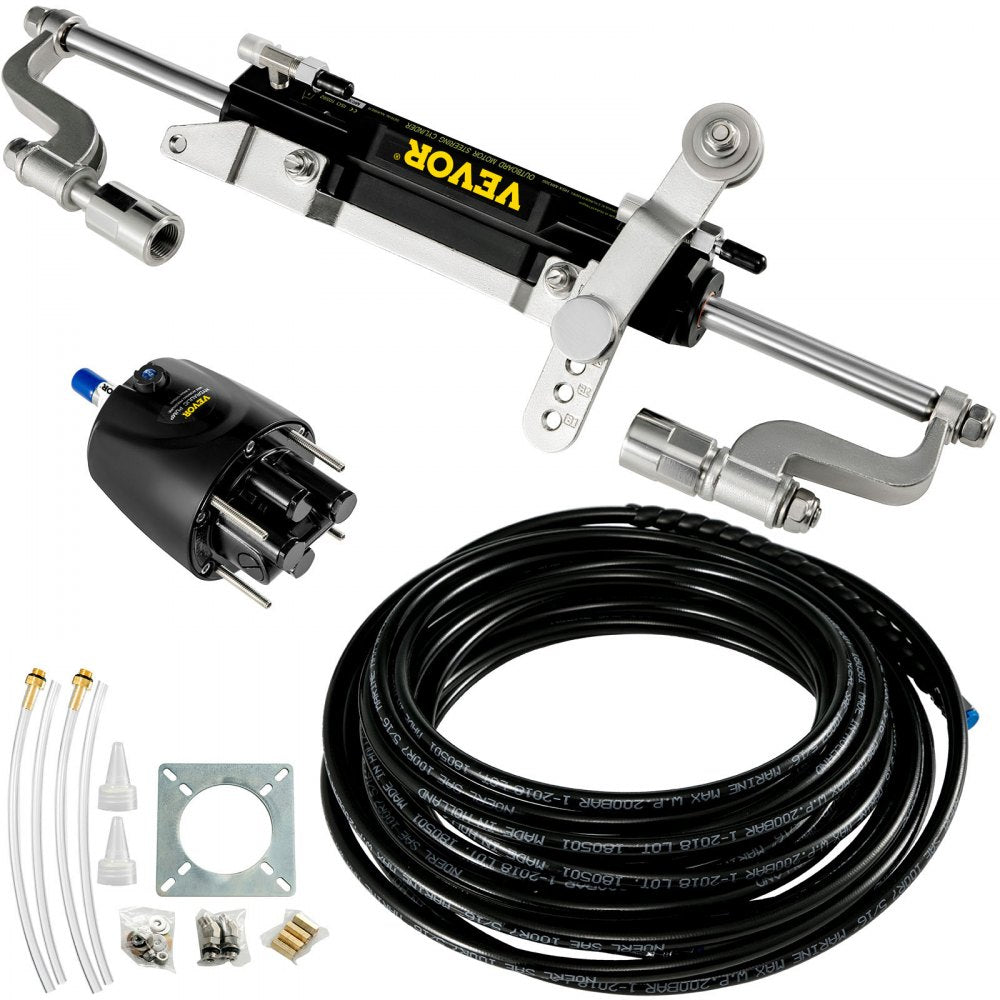

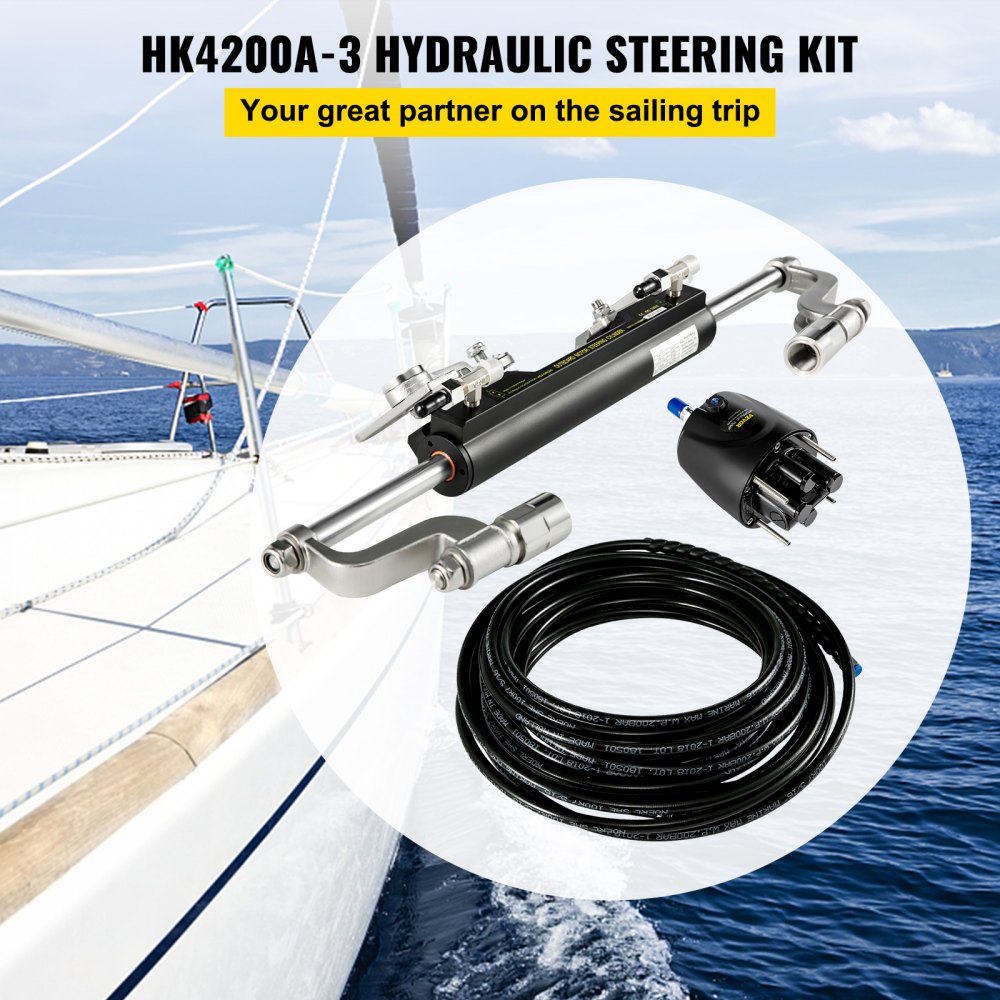

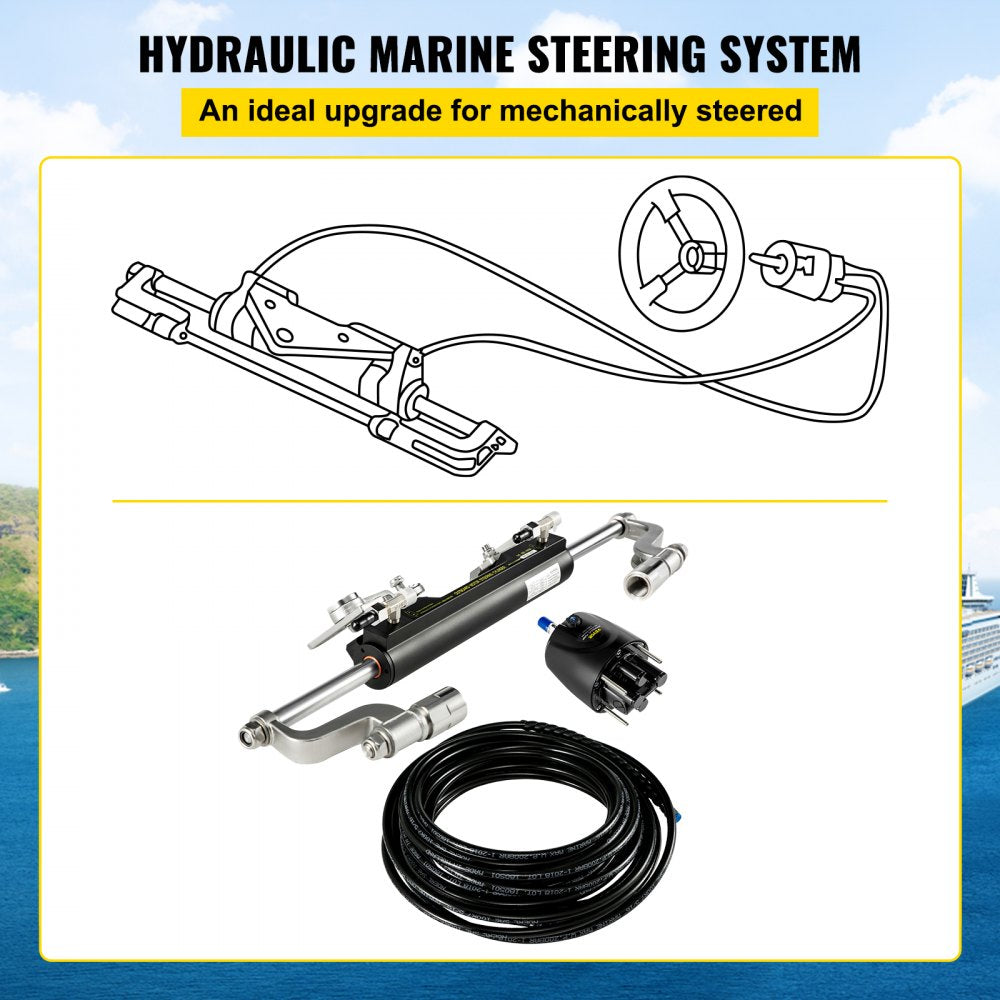

VEVOR Hydraulic Steering Kit offers smooth, low-friction steering for boats up to 300HP with built-in two-way lock cylinder and cut-to-length hoses. Features 300 HP Hydraulic Steering Kit: The hydraulic outboard boat steering kit includes a balanced steering cylinder, a low-friction helm, two lengths of 20ft hose, and a fill kit. It will perfectly replace your aging or broken equipment. Note: It's compatible with Yamaha, Honda, Suzuki below 300HP, not for Mercury. Built-in Two-way Lock Cylinder: Output force: 470 kgf. The cylinder has a built-in two-way locking valve, which eliminates rebound torque during torsion. With robust barrel design and efficient sealing, the system can withstand the harsh environment. Max. 300HP Helm Pump: Max. Working pressure: 6.9 Mpa/1000 psi. The low friction helm ensures smooth and comfortable steering. And it has a replaceable shaft seal that can be easily replaced. Cut-to-length Hoses: Our high-strength nylon hose is equipped with quick-fit 1/4'' pipe fitting for easy and fast installation and multiple re-uses. Each hose is 20' long and can be cut for your specific installation, accommodating most boats. Great Partner for Your Boat: Our hydraulic steering kit is for single-outboard powered boats rated up to 300 HP, including runabouts and inflatables — and outboard engines with ABYC standard engine tilt tubes up to 300 HP (total). For single station, single-engine use only. Specifications Model Hydraulic Boat Steering Kit Application Up to 300HP Max Pressure 6.9Mpa (1000psi) Output Force 470 kgf Volume 141cc Tube I.D Φ35 mm Source: VEVOR Official | SKU: XWYYFXBTJ300HP001V0
